Plastic Sheet Granulator

Applications of the Plastic Sheet Granulator
3E plastic sheet granulator is suitable for plastic plates, plastic buckets, pipes, high strength engineering plastic, rubber, tires and other materials. The rotor adopts high strength alloy steel, and the opening and closing of the hopper and cutting chamber are controlled by the hydraulic system, ensuring safe and stable operation. Professional rotor design can reduce the crushing time and dust and prolong the working life of the granulator simultaneously. The plastic sheet granulator is CE certified, and equipped with overload protection system and power interlocking, ensuring that the operation of granulator more stable and efficient.

Structure chart

Technical Specifications of the Film Granulator
Model
Item 		PC2660 PC3260 PC3280 PC4280 PC42100 PC42120
Dimension L/W/H (mm) 1483×1328×1740 1486×1368×1711 1586×1568×1814 1770×1642×2425 1770×1842×2425 1760×2221×2530
Cutting chamber C/D (mm) 634×383 634×415 834×414 834×540 1034×540 1234×540
E （mm) 1567 1269 1369 1842 1842 1947
Rotor Diameter (mm) φ260 φ320 φ320 φ420 φ420 φ420
Main Shaft Speed (r/min) 591 438 627 466 466 462
Screen Mesh (mm) φ8 φ12 φ12 φ12 φ12 φ12
Rotor-knives (PCS) 3×2 3×2 3×2 3×2 3×2 3×2
Stator-knives (PCS) 2×2 2×2 2×2 2×2 2×2 2×2
Main Motor Power (KW) 15 15 22 37 45 55
Weight (KG) 890 1485 1646 2820 3230 3650
Features of the Plastic Sheet Granulator

CE Certified
The plastic sheet granulator is CE certified, and equipped with overload protection system and power interlocking, ensuring that the operation of granulator more stable and efficient.

Sound insulation enclosure
Different size and form of screen meet different needs of customers.

Screen
The fragmentized material is discharged automatically through the screw conveyor to ensure the continuous production of the granulator.

Spiral Discharging
The fragmentized material is discharged automatically through the screw conveyor to ensure the continuous production of the granulator.

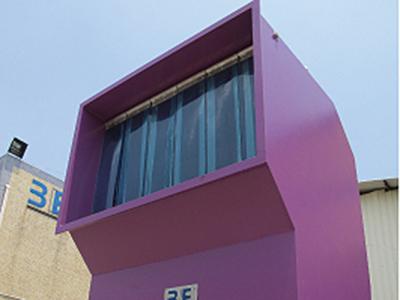

Hopper
With the reinforced design, the hopper is strong and durable.
