Hammer Mill

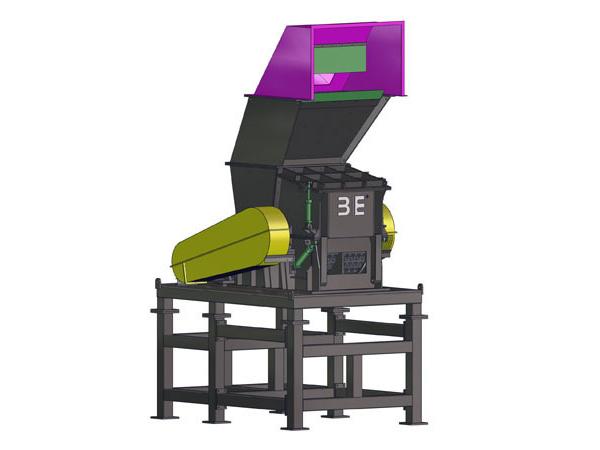

The ZP series hammer mill features of sturdy welded structure, its blade is made of high manganese steel, so it has high toughness and impact resistance. This milling machine is used to crush scrap metal (steel, iron, aluminium), household appliances, electronic waste, circuit board, gypsum board, etc. The discharging size can be controlled by screen, with uniform granularity and high efficiency.
| Model | |||||
| Dimensions L/W/H (mm) | 1750×1220×2210 | 2300×1650×2500 | 2850×2900×2760 | 4230×2290×5320 | 5340×6500×4800 |
| Intake Width E (mm) | 420 | 560 | 760 | 1160 | 1560 |
| Blade Turning Diameter (mm) | φ596 | φ780 | φ960 | φ1260 | φ1660 |
| Main Power (kw) | 37 | 55 | 90-132 | 160-250 | 315-400 |
| Weight (kg) | 1500 | 3600 | 7800 | 21600 | 29500 |
| Production Capacity (kg/h) | 500-1000 | 1000-1500 | 2000-3000 | 4000-6000 | 8000-12000 |
3E RECYCLING design and manufacture various shredders and recycling machines, with custom recycling lines and solutions for processing plastic film, PET bottles, rubber tire, scrap metal, municipal solid waste, medical, chemical and industrial waste, etc.
