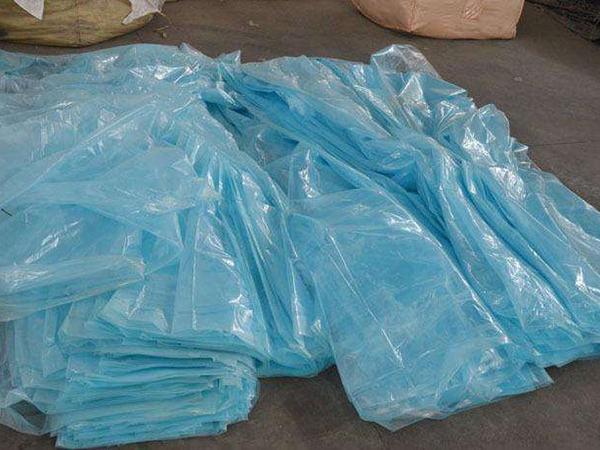

3E agricultural plastic film granulating, washing, drying line is suitable for films with less than 30% contamination degree of materials. The final moisture content of the material is less than 10-15% after shredding, washing, dehydration, extrusion and drying.

Production Layout
We have the optimal solution made to order for users with 300-4,000 KGS /hour output on the basis of the needs of users. So that's the basic flow.

1. Double Shaft Shredder
3E Double Shaft Shredder can shred materials or crush them into smaller pieces to make it easier for the following washing. Meanwhile, with added water, part of the impurities of the materials can be removed during the crushing. We can provide customers with different specifications of shredder on the basis of the output demand.

2. Roller Screen
Roller screen can remove silt, metal and other impurities in materials to reduce the damage to the machine during working, which is mainly used for previous recycling and processing of the waste plastic.

3. Sink Floating Tank
Sink floating tank can wash and separate impurities from materials on the basis of density.

4. Horizontal Dewatering Machine
Horizontal dewatering machine is mainly suitable for mechanical dewatering and drying of waste plastics after washing. The main shaft carries the plastic to the screen by centrifugal force produced by high-speed rotation. The water is discharged through the screen and the plastic enters the next step. Made using highly wear-resistant materials, the blades can be removed for replacement. Equipped with the automatic washing device, the screen is clean and can keep continuous and efficient production. Dryness can be increased by 2-3% by using patented air inlet structure.

5. Squeezer & Agglomerator
Agglomerator is suitable for dewatering of PE/PP plastic film or woven bag after crushing. It squeezes the loose material so that the water in the material can be discharged from the screen hole of the spiral pipe. Its discharge is controlled by hydraulic pressure to prevent clogging. The water content of the agglomerator can be controlled below 5% due to good drying result and low energy efficiency.
